World3, the public beta

Forty years ago I had my first close encounter with mathematical models of doomsday. The Limits to Growth, published in the spring of 1972, offered a grim vision of environmental and economic collapse, based on the implacable logic of a computer simulation called World3. For extra nerd-cred authenticity, the results of the simulation were set forth in crude black-and-white graphs reproduced directly from line-printer output.

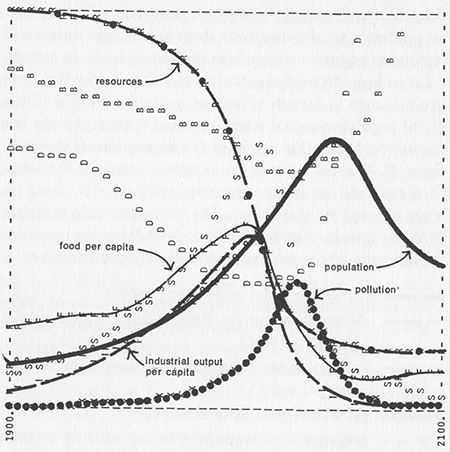

ASCII infographics from The Limits to Growth

I wrote about The Limits to Growth and World3 back in 1993. Now I have revisited the subject in my newly published American Scientist column. Buried deep within the new column is a note mentioning that I’ve been working to re-implement the World3 model in JavaScript. “The result of this exercise is at http://bit-player.org/limits,” the column says.

If you follow that link, you’ll find it’s true: There’s a rudimentary version of the model you can play with (if you have the right browser).

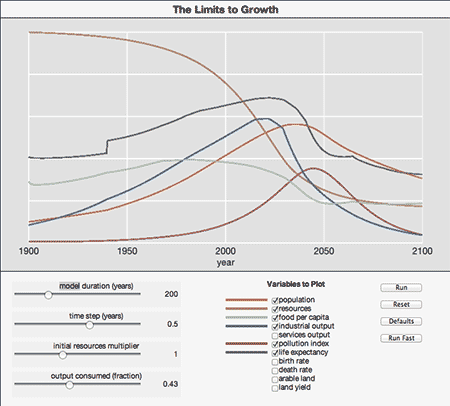

Screen image of the JavaScript Wortld3 model

But I have to tell you, it was a near thing. When the magazine was shipped to the printers three weeks ago, the program was unfinished. Two weeks ago, it was finally running but giving weird results. A week ago the output was still nonsense. Since then I’ve had more anxious moments, late nights, and occasions to ponder the foolishness of publicly announcing vaporware. For a while it looked like I might have to admit defeat and write a sheepish apology for promising something I couldn’t deliver. Never again, I said to myself. And yet, when it’s all over, I get such a kick out of building a thing like this.

Herewith a few notes, mostly technical, on the building process.

What the model models. For background on World3—where the project came from, who did it, and whether you should worry about the model’s bleak predictions—please see either of my columns. Very briefly, the model traces interactions among five main components of the global ecosystem and economy: the human population, agriculture, industry, nonrenewable resources and pollution. If you could strip the model down to its mathematical essentials, it would be a system of coupled differential equations, something like the Lotka-Volterra equations for predator-prey populations. But the model is actually formulated in the language of “system dynamics,” a simulation methodology invented in the 1950s by Jay W. Forrester of MIT, with heavy influence from control theory and servomechanisms.

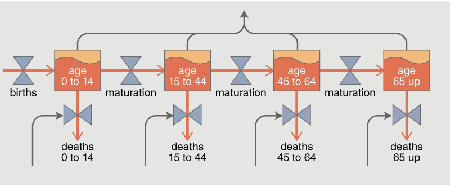

The key elements of a system dynamics model are represented by levels and rates, or less formally vats and valves. Here’s the population section of the World3 model:

vats and valves in the population section of the World3 model

The orange rectangles are levels, which integrate the inflow and outflow of people. The rates of flow are determined by the valves, represented here as hourglass-shaped icons (a graphic device borrowed from control theory and industrial engineering).

Twiddling the knobs. If you go and play with the model, most of the controls should be pretty obvious. The original World3 model extended over 200 years, from 1900 to 2100; the model duration slider can extend the horizon out to 2400. The time step slider controls the integration interval (the variable dt within the model); if you set it to a value greater than 1 year, you’re likely to see spurious short-period oscillations caused by undersampling. The initial resources multiplier affords control over a variable that turns out to be crucial in determining the fate of World3. Note that the resources curve in the graph shows the fraction of resources remaining, so it always begins at the same initial value; the slider setting effectively determines the rate of depletion. The final slider, output consumed, provides access to another variable that can greatly alter the outcome of the simulation. This quantity is the fraction of industrial output that is diverted into consumption, defined as anything nonproductive; the output not consumed is reinvested in agriculture, industry and the extraction of natural resources. High consumption acts as a damping or friction term, curtailing the positive feedbacks that lead to much of the future unpleasantness in the model. As I snidely commented in 1993: “The model seems to be telling us to invest less in farms and factories and to spend more on frippery and fast cars. Armaments also fall into the category of nonproductive spending, so perhaps we need a good vigorous war every few decades.”

A few snapshots of model behavior. My purpose in writing this program was not really to explore the behavior of the World3 model; for that there are several more versatile and more trustworthy implementations out there (including at least one that runs within a web page). I just wanted to understand what’s inside the box. Nevertheless, now that the model is running, I may as well point out a few of its tricks.

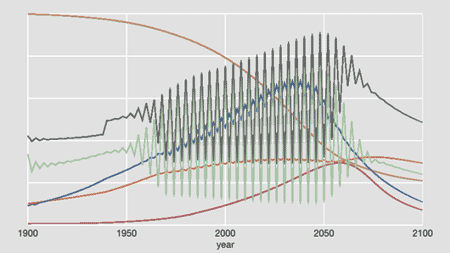

Here’s the spurious oscillation mentioned above, with dt = 2:

spurious oscillations caused by setting the integration interval to too large a value

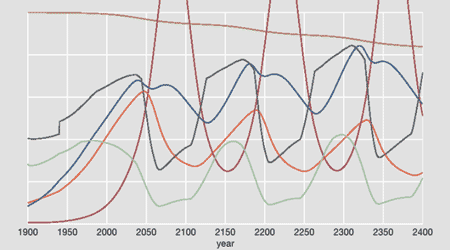

A quite different kind of oscillation appears when the initial stock of natural resources is set to a very high value (32×):

oscillations with a period of about 150 years, observed when the resource base is very large

These oscillations, with complex waveforms and a period of roughly 150 years, are not caused by integration error but probably represent a natural behavioral mode of the model itself (analogous to the population cycles seen in predator-prey models).

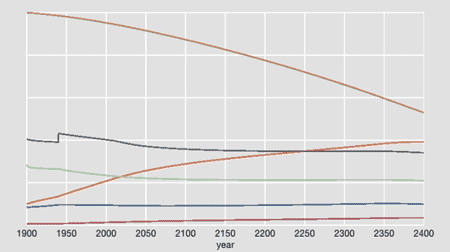

We get a much calmer vision of the future by setting the consumption fraction to 0.51, rather than the World3 default of 0.43:

Setting consumption to a higher value tames the overshoot phenomenon

Siphoning off some of the capital that would otherwise fuel rapid growth tames the overshoot-and-collapse regime of the standard run. However, the outcome is hardly utopian. Life expectancy and food per capita remain permanently low; so does industrial output, which can be taken as a proxy for wealth.

Putting World3 in a web browser. The original World3 model ran on mainframe hardware—IBM 360 and 370 machines. Now it fits into a web browser on a laptop or an iPad. I try to keep my sang froid about such things, but the fact is I’m just plain astounded by the march of progress.

I should emphasize that the entire JavaScript computation is happening on your computer, not my server. The program is downloaded once and then executed locally each time you press the Run button. And it’s not even much of a computational burden. The gradual unfolding of the graphs across the years is a deliberate animation effect, not a reflection of actual computation speed. (The Run Fast button is meant to eliminate artificial delays, but it doesn’t quite achieve that yet.)

DYNAMO and toposorting. The 1972 version of World3 was written in a language called DYNAMO, created a decade earlier by Phyllis Fox and Alexander Pugh, who were then part of Forrester’s group at MIT. In lexical and syntactic structure DYNAMO is what you’d expect of a language from the punch-card era—six-letter variable names and ALL CAPS—but in other respects it’s an interesting early experiment, with a programming style that falls somewhere between procedural and declarative.

One feature is particularly noteworthy. In DYNAMO a model is defined by a set of “equations” (really assignment statements) that can be written down in any order but have to be executed in a sequence that takes into account the way one equation depends on others, so that every variable is evaluated before it is used. The DYNAMO compiler reordered the equations automatically. This was an early application of topological sorting; the first efficient algorithms for this process were developed circa 1960, in connection with PERT project-scheduling methods.

Topological sorting takes a directed graph and reduces it to a linear list of nodes satisfying the following constraint: If the graph includes a directed edge uv, then u appears before v in the list. This ordering is possible only if the graph is acyclic, with no loops of directed edges. As it happens, the network of equations for the World3 model is not acyclic. Here’s one section of the network that violates the no-loops rule:

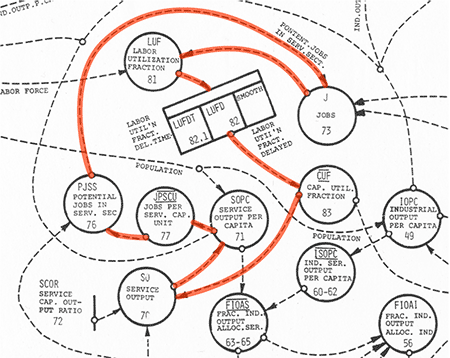

Causal loop marked

If you try to assign a value to Labor Utilization Fraction (near the upper left), you’ll see that you first have to know the value of Jobs; before you can evaluate Jobs, you need to know Potential Jobs in Service Sector; etc. Continuing to trace through the red arrows reveals that before you can calculate Labor Utilization Fraction, you need to know Labor Utilization Fraction. Uh oh. The model can be made computable only by artificially interrupting such loops. In this instance the break is made by assigning an arbitrary initial value to the variable Labor Utilization Fraction Delayed.

From DYNAMO to JavaScript. In a 1989 memoir, Forrester tells this story about the origins of system dynamics:

An expert computer programmer, Richard Bennett, worked for me when I was writing the 1958 article, “Industrial Dynamics—A Major Breakthrough for Decision Makers,” for the Harvard Business Review…. For that article I needed computer simulations and asked Bennett just to code up the equations so we could run them on our computer. However, Dick Bennett was a very independent type. He said he would not code the program for that set of equations but would make a compiler that would automatically create the computer code.

Bennett’s policy in this matter was sensible and wise; I foolishly ignored it. I didn’t want a general-purpose compiler for system-dynamics models; I just wanted to implement this particular model. So I didn’t bother to structure the code in a way that would separate the model equations from the algorithms that process those equations. Big mistake.

My original plan was to write a prototype version in Lisp (my native tongue) and then redo it in JavaScript for wider distribution. I abandoned that idea when I ran short of time—another mistake. I was ignoring a Brooksism: Plan to throw one away; you will anyhow. The program now running is the one I need to throw away. The code is a mess. Please avert your eyes.

I don’t blame JavaScript for this situation. This is the third Javascript project I’ve taken on in the past few months, and I’m finding the whole ecosystem—JavaScript itself plus HTML5 and CSS3, along with the developer tools built into Google Chrome—quite a pleasant place to work and play.

My basic strategy was to make a line-for-line translation of DYNAMO statements into JavaScript. A typical DYNAMO equation looks like this:

SC.K = SC.J + (DT)(SCIR.JK - SCDR.JK).

SC is service capital, a level (or vat) variable; SCIR and SCDR are rate (or valve) variables representing the service capital investment rate and the service capital depreciation rate; DT is the numerical integration period; juxtaposed parentheses indicate multiplication. And what about the appended letters J, K and JK? They are “timescripts”: J designates the previous moment, K the current moment and JK the interval between J and K. All this notation carries over into JavaScript with remarkably little fuss. If we represent a variable such as SC as a JavaScript object, the timescript notation is unchanged, with SC.J and SC.K denoting properties of the object SC.

Apart from transcribing the equations, it’s also necessary to provide half a dozen special operations such as smoothing, delaying and clipping signals. And there is a kludgy “table” facility for piecewise linear approximations of arbitrary functions.

Canvas vs. SVG. My last JavaScript project used Scalable Vector Graphics, so for this one I decided to try the main alternative, the HTML “canvas” element. Drawing on the canvas is very fast, but that’s about the only nice thing I can find to say about it. The canvas is simply a rectangular array of pixels, and drawn objects have no structure apart from the pixels that compose them. The curves making up a World3 graph cannot be moved or rescaled or otherwise altered without redrawing the entire graph. The animation effect, in which all the curves seem to gradually elongate, is an illusion: At each time step the entire curve is redrawn from the beginning. Thus drawing a curve of 400 segments actually calls for 80,200 operations.

SVG offers friendlier facilities. Not only can you draw objects piece by piece, but the objects retain their identity as objects; they become part of the DOM, the document object model. You can address them individually, change their colors and other properties, transform their geometry. It would be easy, for example, to highlight and label a curve on mouseover.

Firefox is the new Internet Explorer. (But so is the new Internet Explorer.) Making stuff for the web has become a lot more fun in the past year or two, thanks in large measure to the WHATWG process. There’s an accelerated pace of change in the standards community, and browser makers have been quickly implementing the latest proposals. For this project I needed not only the canvas element but also the “range” input element, which is supposed to create a slider-type control widget. In the Chrome, Safari and Opera browsers both of these components worked out of the box. Missing from that list of compatible browsers is Internet Explorer—the perennial Think Different browser. Also missing is Firefox, which is a little more surprising. It turns out that sliders have been on the agenda of the Firefox development crew for six years, but they remain unimplemented.

With mixed feelings, I installed a polyfill that allows the slider code to run in Firefox. (Thanks Frank Yan!) My feelings are mixed because this sort of spackling does nothing to encourage the Firefox developers to address the problem.

The big bug. Getting the program to the point where it would run at all was a tedious chore (150 equations to be retyped from a marginally legible printout), but was otherwise unremarkable. After I fixed a few typos and misplaced semicolons, the code compiled and ran without throwing error messages. Then the real challenge began. The output looked nothing like the graphs published in The Limits to Growth. My World3 was a much nicer place, with gradual population growth and a slow but steady gain in industrial output and food production. Try as I might, I could not get the world system to collapse in ruins the way it’s supposed to.

This went on for more than a week.

Yes, I did consider the possibility that my program was correct and the dozens of other implementations over the past 40 years were all wrong. But I’m not quite that much of an egomaniac.

What was the bug that caused me so much grief? JavaScript experts will see the error immediately. In one of those initialization routines needed to break a cycle in the graph of dependencies, I had written something like this:

if (typeof(v) == Number) { return v }.

The problem is that (typeof(v) == Number) will return false no matter what the type of v happens to be. If v is not a number, the predicate is obviously false. If v is a number, the result of typeof(v) is not Number but "number". As a Lisp guy, I just can’t get used to JavaScript’s stringiness. (I could have said (v.constructor == Number), but I didn’t.)

Glitches. Given this evidence of my slapdash coding and testing practices, it’s fair to ask how many bugs infest the rest of the program and whether any of the results should be trusted.

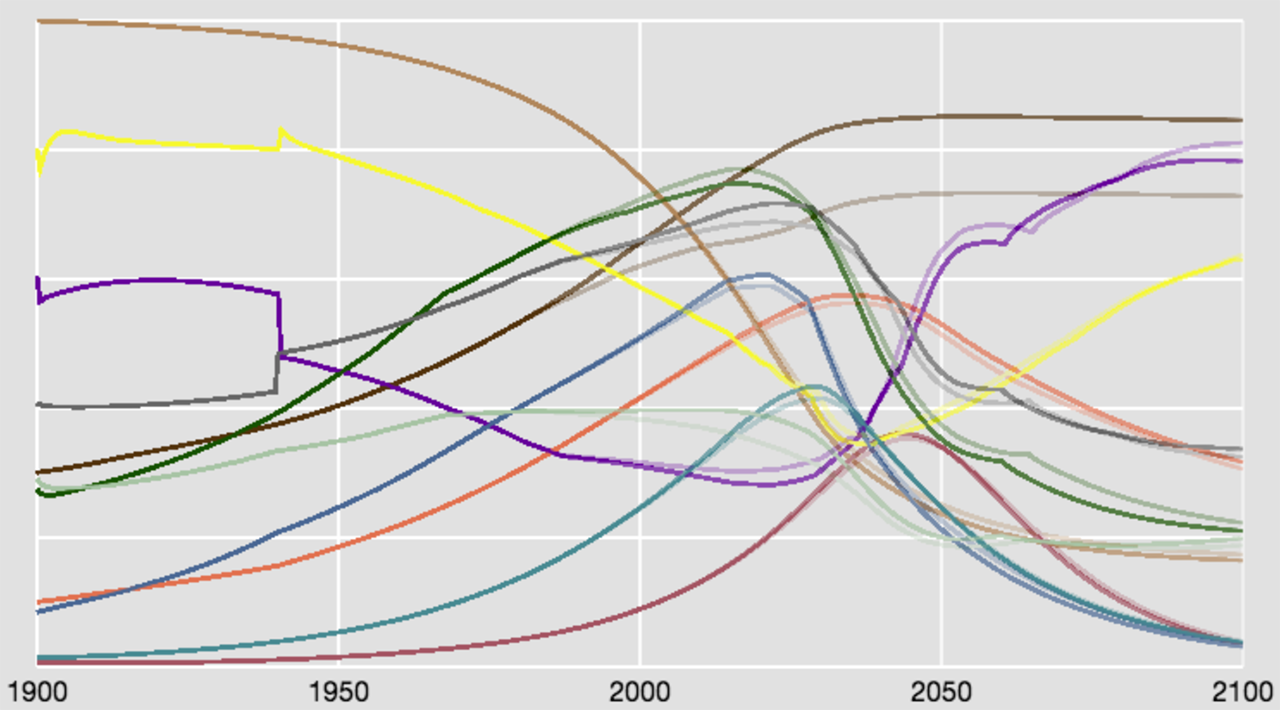

An obvious validation strategy is to set all parameters to default values and then compare the output of the program with that of the original 1972 model. That’s not so easy. The graphs published in The Limits to Growth have no numerical scales (apart from markers for the endpoints of the time axis). Hence all I can do is check that the peaks and valleys have the right phase relationships. My eyeball says most of them match reasonably well, but this methodology does not inspire great confidence.

Some smaller-scale features of the curves also demand attention.

One conspicuous oddity is not a bug—or at least not my bug. Take a look at this detail of a graph of population (orange), birth rate (yellow), death rate (purple) and life expectancy (gray):

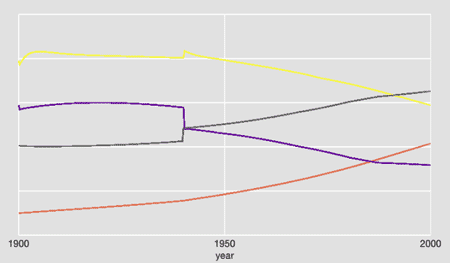

Glitch in 1940

It looks like something really strange happened in 1940. And in World3 something did: There’s an abrupt switch between two table functions, changing the effect of health services on lifespan. The death rate plunges; there’s a brief blip in the birth rate; life expectancy ratchets upward and then keeps growing steadily. The abruptness of the transition looks highly unrealistic, but this is not the result of a programming error. It’s part of the model specification.

On the other hand, the little blips in the birth and death curves at the very start of the simulation are not part of the model specification. I think I understand where they come from: It’s an initialization problem. The initial birth and death rates are not in equilibrium with other elements of the model, and it takes several iterations to eliminate the imbalances. As far as I can tell, however, these glitches do not appear in the 1972 output, so I must have misunderstood something about the model structure or the initialization procedure. I’m still looking into it.

It’s in the nature of writing software—or writing English prose, for that matter—that as soon as you finish a project, you see all the mistakes and missed opportunities with great clarity, and you feel that if you could just start over and do it all again, you’d finally get it right. I’m feeling that impulse right now, and I may act on it. But in light of my recent experience, I’m not making any promises.
