# Sums, differences, and surprises

I’ve received the following note from Barry Cipra, bit-player’s Bureau Chief in Northfield, Minnesota, (where all hail broke loose yesterday):

Your latest postings [here and here] have motivated me to idle away some time with a variant of the problem(s) you discussed. To wit, I got to wondering what happens if you restrict yourself to taking sums of distinct pairs and positive differences of numbers from a (finite) set S — i.e., x+y and xy with x > y in S.

It was easy, after a while, to see that the sum set is usually larger than the difference set. In particular, for the set {0, 1, 2, …, m}, the sum set is {1, 2, …, 2m–1}, while the difference set is {1, 2, …, m–1}. It seems, or at least seemed, obvious that the sum set is never smaller than the difference set, but a proof keeps slipping through my (fumbling) fingers, which suggests that either it isn’t true, or the proof is complicated, or the slow decline of my mathematical abilities has steepened and accelerated. Intuitively, each duplicate sum is associated with two duplicate differences: If a+d = b+c with a < b < c < d, then db = ca and dc = ba. The problem, of course, is that you can have duplicate duplicates.

It seemed worth looking at how the sum/difference ratio tends toward 2 as one “grows” a set S by randomly adding numbers between 1 and some large upper bound, say m = 10,000. I wrote, ran, debugged, ran, debugged,…., and finally ran successfully a little (Basic) program to do this, and tried it with various values of m, printing out the ratio as each new (random) element got added. The number of elements required to reach any given ratio r (less than 2) seems to be proportional to sqrt(m). In particular, the number of elements to reach r=1.5 seems to be 2*sqrt(m). It would be most gratifying if this turned out to be asymptotically exact.

Barry also points out a connection with the birthday “paradox.” Here on Earth, any gathering of 23 or more people has a better-than-even chance of including at least two people with the same birthday. On Mars, where the year has 687 days, you need to assemble 32 people to have a fifty-fifty chance of such a coincidence. On Saturn, where people can have any of 1,055 birthdays, the minimum size of the group is 39. (I would add that on Pluto, with a year of 14,158 Plutonian days, the minimum likely size for a double-birthday party is 141 people. However, there can’t be that many people on Pluto, since it’s only a dwarf planet.) Anyway, the point of all this is that the number of people needed for a birthday coincidence grows in proportion to the square root of the number of possible birthdays. The calculation is similar when it comes to the number of elements in a set drawn at random from {0, 1, 2, …, m}, except that the probability we’re interested in is not that of finding two identical elements but rather that of having two pairs of elements with the same sum or difference.

Barry’s version of the problem has a satisfying symmetry. For both sums and differences, we’re looking at the upper triangle of a matrix, excluding the diagonal and everything below it. If there are no duplicates, or coincidences, then the sum set and the difference set are necessarily of the same size.

Inspired by Barry’s example, I have idled away a few of my own declining hours, and gone off on a bit of a tangent.

In an arbitrary finite set of non-negative integers, suppose there are n elements, and the largest element is m. If m is much larger than n, coincidences are unlikely among both the sums and the differences; in the limiting case, they have probability zero. If m = n–1, then the set must be the arithmetic progression {0, 1, 2, …, m}, and the number of coincidences is maximized. Barry’s algorithm for adding randomly chosen numbers to a set, one at a time, can be viewed as a way of exploring the transition between these two extremes. We can ask, at each stage of the process: What is the probability that a randomly chosen number, distinct from all the existing elements of the set, can be adjoined to the set without generating a coincidence?

Here is a somewhat different question. Instead of choosing numbers at random to add to the set, suppose we always insert the smallest number that can be adjoined to the set without creating a coincidence. In other words, we build the set from the bottom up. What does the resulting set look like?

First consider just the constraints imposed by the sum set, ignoring coincidences among differences. Starting from the empty set {}, we can obviously go on to {0} and then to {0, 1}. Next we can insert 2, because the three sums 0+1 = 1, 0+2 = 2 and 1+2 = 3 are all distinct. But we cannot add 3 to the set, because that would introduce the coincidence 0+3 = 1+2. The next permissible element is 4; the set {0, 1, 2, 4} produces the sum set {1, 2, 3, 4, 5, 6} without coincidences. Going on from there, both 5 and 6 are excluded, but 7 is okay. Working with pencil and paper, I extended this set as far as {0, 1, 2, 4, 7, 12, 20, 29}. This gave me enough to go consult the Oracle of AT&T. I found the sequence listed as No. A010067 in Neil Sloane’s Encyclopedia of Integer Sequences. The sequence is described as follows: “A B2 sequence: a(n) = least value such that sequence increases and pairwise sums of distinct elements are all distinct.” This was just what I had been looking for, and the success boosted my confidence that at least I had done the arithmetic right.

Now I tried the same method with the differences. Again the first few sets that yield no coincidences are {}, {0} and {0, 1}, but in the subtractive case {0, 1, 2} fails, because 2–1 = 1–0. On the other hand, {0, 1, 3} is without conflicts. The series continues {0, 1, 3, 7, 12, 20, 30}. It was time to visit the Oracle again. This sequence is No. A025582, but the identifying tag line is not quite what I was expecting: “A B2 sequence: a(n) = least value such that sequence increases and pairwise sums of elements are all distinct.” I had generated the series by looking at differences of distinct elements, but it turns out that sums of not-necessarily-distinct elements yield the same series. Curious.

Let’s consider the element-by-element differences between these two sequences, which I’m going to call S(n) for the sums of distinct pairs and D(n) for the differences of distinct pairs:

   n        D(n)       S(n)      D(n)-S(n)
0          0          0            0
1          1          1            0
2          3          2            1
3          7          4            3
4         12          7            5
5         20         12            8
6         30         20           10
7         44         29           15
8         65         38           27
9         80         52           28
10         96         73           23
11        122         94           28
12        147        127           20
13        181        151           30
14        203        181           22
15        251        211           40
16        289        257           32
17        360        315           45
18        400        373           27
19        474        412           62
20        564        475           89


From the first few entries in this table one might well guess that the sums will always be lagging behind the differences, so that the D(n) – S(n) sequence grows monotonically. But then there’s a reversal at n = 10, and after that it’s not clear exactly what the trend will be. The obvious question is: Can S(n) ever be greater than D(n)? This time the Oracle can’t help us; a Sequence Server search for {0, 0, 1, 3, 5, 8, 10, 15, 27, 28} comes up empty.

I tried producing a few more terms of S(n) and D(n) and their differences. Struggling with a grotesquely inefficient program, I invested an hour of cpu time, which got me as far as n = 60:

   n        D(n)       S(n)      D(n)-S(n)
0          0          0            0
1          1          1            0
2          3          2            1
3          7          4            3
4         12          7            5
5         20         12            8
6         30         20           10
7         44         29           15
8         65         38           27
9         80         52           28
10         96         73           23
11        122         94           28
12        147        127           20
13        181        151           30
14        203        181           22
15        251        211           40
16        289        257           32
17        360        315           45
18        400        373           27
19        474        412           62
20        564        475           89
21        592        530           62
22        661        545          116
23        774        607          167
24        821        716          105
25        915        797          118
26        969        861          108
27       1015        964           51
28       1158       1059           99
29       1311       1160          151
30       1394       1306           88
31       1522       1385          137
32       1571       1434          137
33       1820       1555          265
34       1895       1721          174
35       2028       1833          195
36       2253       1933          320
37       2378       2057          321
38       2509       2260          249
39       2779       2496          283
40       2924       2698          226
41       3154       2873          281
42       3353       3060          293
43       3590       3196          394
44       3796       3331          465
45       3997       3628          369
46       4296       3711          585
47       4432       3867          565
48       4778       4139          639
49       4850       4446          404
50       5122       4639          483
51       5242       5021          221
52       5297       5064          233
53       5750       5322          428
54       5997       5613          384
55       6373       6003          370
56       6800       6273          527
57       6924       6493          431
58       7459       6641          818
59       7546       6979          567
60       7788       7275          513


Would you care to place a bet on the further behavior of this series? At n = 60, D(n) – S(n) looks like it’s still growing, on the average, but it’s also still fluctuating. Will any of the dips in the curve ever plunge deep enough to bring the balance below zero? Or will the overall upward trend prevail in the long run? Maybe it’s like π(x) – Li(x) in number theory. This function—the difference between the actual number of primes up to x and an estimate proposed by C. F. Gauss—is negative for all values of x anyone has ever calculated explicitly. Nevertheless, there’s a proof that π(x) – Li(x) does eventually become positive; indeed, it changes sign infinitely often. But the first such zero crossing is somewhere out in the remotest exurbs of the number line.

I debated: Is it worth the bother of writing a better program to add a few more lines to the table? If D(n) – S(n) is positive for all values of n up to n = 60, what is the probability of discovering a negative value at n = 61, or even n = 600? I have no idea how to answer that question mathematically, but psychologically the prospects seemed pretty dim. Nevertheless, I wrote the program. Here are the next four entries in the table:

   n        D(n)       S(n)      D(n)-S(n)
61       8219       7587          632
62       8502       8017          485
63       8729       8373          356
64       8941       9071         -130

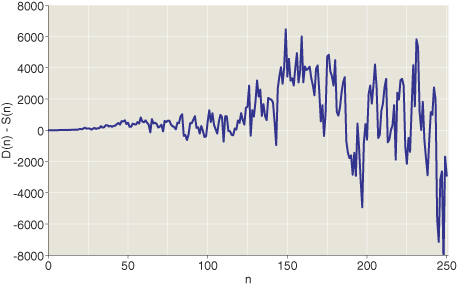

There it is: S(64) is greater than D(64). And I soon learned that this excursion into negative territory is not a one-of-a-kind freak occurrence. In the interval between n = 0 and n = 500, D(n) – S(n) is positive for 301 values, negative for 198 values and 0 for 2 values. It seems a reasonable conjecture that positive and negative values occur equally often. Here’s a graph of D(n) – S(n) for n = 0 to n = 250:

Final note: Although I have just today blundered down this interesting path, I am assuredly not the first to pass this way. I gather that I need to do some reading on Sidon sequences. Are there also connections with Golomb rulers?

This entry was posted in mathematics, problems and puzzles.

### One Response to Sums, differences, and surprises

1. Barry Cipra says:

” …I had generated the series by looking at differences of distinct elements, but it turns out that sums of not-necessarily-distinct elements yield the same series. Curious.”

You say curious, I say obvious. If a-b=c-d, then a+d=b+c. Either all four are distinct, or else two are equal, say a=d.

My own decline is apparent in the assertion that {1,2,…,m-1} is the difference set for {0,1,2,…,m}. I meant {1,2,…,m}.

As one randomly “grows” a set S from among the numbers 0 to m, the number of duplicates, either sum or difference, with each new number goes from none to all — that is, when you add the n+1st number, you (usually) get no duplicates when n is small (compared to m) and nothing but duplicates when n is large. In general you get some fraction, k/n. I wonder what the transition looks like.
